International Industrial Pipe Valves: A Side-by-Side Comparison of Significant Groups
With the constant development of industrial facilities worldwide– from city supply of water networks and long-distance oil and gas pipes to petrochemical plants and fire security systems– shutoffs, pipelines, and fittings continue to be the unhonored heroes that maintain whatever flowing. For purchase experts and designers, the challenge is actual: when confronted with Sphere Valves, Butterfly Valves, Entrance Valves, World Valves, Examine Shutoffs, Control Valves, and Fire Protection Valves, just how do you choose the right one for the work? The solution depends on a handful of variables– media characteristics, how frequently you operate the valve, pressure and temperature scores, and the area you have for installment.
Datang, as a maker operating with its own independent website, has actually long focused on delivering a complete bundle: shutoffs of all major kinds, Stainless-steel Pipes and Carbon Steel Pipes, and a full lineup of Pipeline Fittings. This post walks you through a detailed comparison of the seven most popular shutoff classifications, discuss the key points of pipeline product choice, and briefly covers suitable connection methods– all to give you a clear path through the labyrinth of industrial piping system selections.
1. Deep Study the 7 Significant Shutoff Categories
1.1 Round Valves– The Versatile Workhorse for Shut-Off Applications
A Sphere Shutoff utilizes a spherical closure device with a birthed via its facility, revolving 90 levels to open up or close the flow path. Its worldwide appeal is no accident– it incorporates low circulation resistance, quick quarter-turn operation, and dependable sealing performance. The valve seats are commonly made from PTFE or strengthened polymers, which function beautifully in clean media, gases, water, and slightly harsh settings. For high-pressure, large-diameter applications, the trunnion-mounted sphere layout is the best selection; for smaller, budget-friendly lines, the drifting round arrangement does the job just fine.
That stated, Round Valves have their limits. Since the securing counts on line call in between the round surface and the seat, any kind of abrasive particles in the media can conveniently scrape the surface area and create inner leak. That makes them a poor suitable for slurry, without treatment distributing water, or any type of stream carrying solids. At high temperatures, polymer seats might sneak or warp, which is why metal-seated or fire-safe layouts end up being essential.
(Ball Valves)
Common applications: gas circulation stations, refinery product, city gas networks, and cleansed water systems.
What Datang offers: Stainless Steel (304/316L) and Carbon Steel (WCB) options, floating and trunnion-mounted kinds, fire-safe and anti-static frameworks, and both split-body and welded-body designs, with size arrays from DN15 approximately DN600.
1.2 Butterfly Valves– The Smart Choice for Large-Diameter Water Equipment
A Butterfly Shutoff utilizes a disc that rotates within the valve body to control circulation. Its greatest marketing factors? Small structure, light-weight, and marginal installation space– especially in big diameters (DN200 and above), where it clearly beats Ball Valves and Gate Valves in cost-effectiveness. Securing can be soft (lined with rubber or PTFE) or tough (metal-to-metal). Soft-seated types are fine for clean water at area temperature level, while hard-seated variations manage vapor or gently abrasive media at greater temperature levels.
The downsides? Even fully open, the disc remains in the flow course, producing visible resistance. Plus, sealing depends on the elasticity of the seat or eccentric compression, so under high stress, it doesn’t match the tightness of Round Valves or Entrance Valves. Triple-offset designs enhance securing efficiency considerably, however they additionally press the price up.
Normal applications: water treatment plant inlet/outlet keys, cooling water recirculation systems, cooling and heating cooled water headers, and large-diameter air flow air ducts.
What Datang offers: wafer, lug, and flange link types; soft-seated variations with EPDM, NBR, or PTFE linings; hard-seated multi-layer metal layouts; stress ratings from PN10 to PN40.
(Butterfly Valves)
1.3 Entrance Valves– The Conventional Favorite for Low-Resistance Shut-Off
A Gate Valve runs by lifting a gateway or wedge up and down within the body to block or open up the circulation. Its standout feature is the straight-through flow course, which offers it the most affordable flow resistance among all valve kinds– making it the default selection for pipelines where stress drop is a major concern. That claimed, Entrance Shutoffs aren’t developed for frequent operation. The travel is long, the activity is slow-moving, and each cycle wears the sealing surfaces as eviction slides versus the seats.
Gateway Valves come in rising-stem and non-rising-stem arrangements. Rising-stem kinds allow you see the valve setting at a look, making them suitable for above-ground piping; non-rising-stem types save clearance and work well in buried or constrained areas. Wedge-type entrances create tighter seals as they close, managing high-temperature heavy steam lines easily, while parallel-slide gates are much better matched for low-pressure, large-diameter water supply.
Typical applications: power plant main heavy steam lines, petroleum transmission block valves, wastewater plant inlet/outlet headers, and fire pump discharge lines.
What Datang uses: cast steel and Stainless-steel rising-stem and non-rising-stem Gate Valves, wedge and parallel-slide styles, with bevel gear or electrical actuator options for remote operation.
(Gate Valves)
1.4 World Shutoffs– The Trustworthy Companion for Exact Throttling
A Globe Valve utilizes a disc that relocates linearly along the seat centerline, adjusting the circulation area to control the media. The interior circulation course requires the media to transform instructions, which creates high resistance and significant pressure decrease– that’s the main drawback. However that same tortuous path provides the Globe Valve something its competitors can’t match: exceptional strangling accuracy. And when fully shut, the disc and seat create a self-tightening seal with impressive reliability.
World Valves come in right, angle, and Y-pattern layouts. The Y-pattern variation angles the stem at 45 levels to the circulation, reducing resistance and making it appropriate for constant law. The disc profile can be conical, needle-shaped, or allegorical, relying on the circulation characteristics you need.
Common applications: boiler feedwater law, heavy steam desuperheating terminals, chemical activator feed control, and pressed air branch line throttling.
What Datang provides: T-pattern, angle, and Y-pattern Globe Valves, with disc deals with hard-faced with cobalt-based alloys for wear resistance; hands-on handwheel, bevel gear, or pneumatic diaphragm actuator alternatives.
(Globe Valves)
1.5 Check Valves– The Passive Security Obstacle
An Examine Shutoff is fully automated– it opens up with ahead circulation and nearby gravity or spring force when circulation turns around, preventing backflow. At pump discharges, compressor electrical outlets, and parallel equipment trains, Examine Valves are the necessary safety gadget that secures expensive machinery from reverse turning or water hammer damage.
Swing-type Check Shutoffs have a disc that pivots on a joint pin, using low flow resistance and matching large-diameter straight or upright lines. Lift-type Check Valves direct the disc vertically along a guide slot– they seal tighter but have higher resistance, making them a better fit for small-diameter, high-pressure systems. Dual-plate Examine Shutoffs include 2 semicircular discs that swivel a typical pivot, closing quickly with a compact footprint; they’re the fastest-growing type in oil, gas, and chemical projects. One point to see: rapid closure can trigger water hammer, so in high-lift pump stations, designs with dashpot dampers or slow-closing mechanisms deserve thinking about.
Regular applications: pump discharge anti-backflow, steam catch systems, fire pump outlet lines, and chemical plant injection points.
What Datang supplies: swing-type, lift-type, and dual-plate Inspect Valves, with weight or hydraulic dashpot choices for sluggish closure; materials including Carbon Steel, Stainless Steel, and duplex steel.

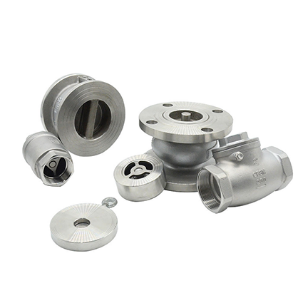

(Check Valves)
1.6 Control Valves– The Final Act in Process Automation
A Control Valve is the end-element in an automated control loop. It takes a signal from the controller, relocates the actuator, and adjusts the valve plug setting to manage flow, pressure, temperature, or liquid level. The real sophistication hinges on the flow characteristic contour (linear, equal-percentage, or quick-opening) and the shutoff’s capability to talk to the control system.
Typical physique consist of right single-seat, straight double-seat, cage-guided, and angle shutoffs. Single-seat shutoffs supply low leak but can not handle high differential stress; double-seat valves tolerate higher pressure declines yet leak much more; cage-guided shutoffs run quieter and manage vibration much better. With the rise of industrial IoT, clever positioners currently sustain HART, Profibus, and Modbus procedures, offering plant drivers real-time responses and diagnostic information.
Common applications: chemical activator temperature control, power plant feedwater circulation law, natural gas pressure-reducing stations, and wastewater oygenation control.
What Datang offers: single-seat, double-seat, and cage-guided Control Valve bodies, with electrical or pneumatically-driven diaphragm actuators; trim materials customizable for anti-cavitation and anti-erosion demands.

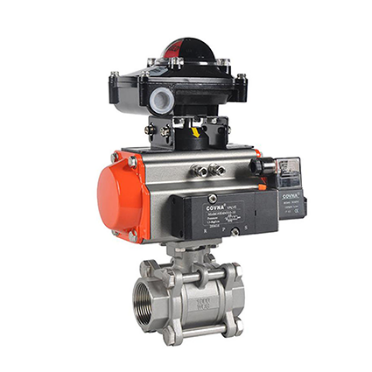

(Control Valves)
1.7 Fire Defense Valves– A Regulatory-Driven Requirement
Fire Defense Valves are specifically developed for sprinkler system systems, fire hydrant networks, and fire pump settings up. What sets them aside from common shutoffs is the requirement for fast activation under emergency situation conditions, rock-solid integrity, and clearly specified stress setups. Common types consist of fire-rated Gate Valves, fire-rated Butterfly Valves, deluge shutoffs, wet alarm shutoffs, and pressure-reducing valves.
The selection reasoning below is various from commercial valves– it’s driven much less by the media itself and more by the system kind (wet, completely dry, pre-action, or deluge) and the threat classification you’re shielding. Considering that these systems rest idle for long periods, internal leak and corrosion-induced sticking are the main failure dangers. That’s why rust-proofing, seal product aging cycles, and convenience of routine testing ended up being top concerns.
Normal applications: high-rise lawn sprinkler risers, petrochemical plant fire loops, below ground utility tunnel fire areas, and storage tank ranch foam systems.
What Datang provides: fire-rated Gateway Shutoffs and Butterfly Valves with inner and external epoxy finish; alarm valves total with retard chambers, water motor gongs, and pressure buttons; completely compatible with Fire Battling Pipes and Grooved Fittings for a full system service.

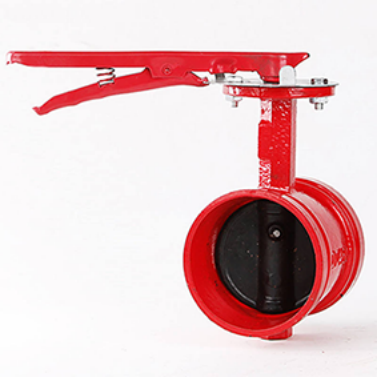

(Fire Protection Valves)

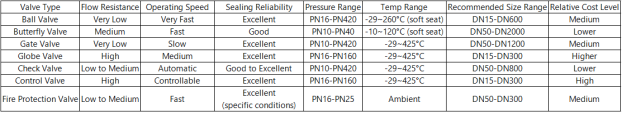

Quick Comparison Table– Seven Significant Valve Groups at a Glimpse
(Major Valve Categories Comparison)
Keep in mind: The figures over are basic sector referrals. Real efficiency depends upon material selection, sealing style, and making accuracy.
2. Just How Pipeline Product Selection Functions with Your Valve System
As soon as you’ve settled on the shutoff kinds, matching the piping product is the following essential action. Pipelines aren’t just conduits– their inside surface area coating straight impacts how well your valves seal, and their wall surface thickness figures out the system’s stress border.
2.1 Stainless Steel Pipes– The Go-To for Corrosive Services
Stainless-steel Pipes offer superb resistance to uniform rust and pitting, making them a staple in chemical handling, food and pharmaceutical sanitary lines, and offshore applications. Austenitic grades like 304/304L and 316/316L are the most typical; 316L, with its molybdenum enhancement, manages chloride-bearing environments far better than 304. When you’re running Stainless-steel Pipeline, the shutoff bodies and internal trim should likewise be stainless to stay clear of galvanic corrosion between different metals.
Bonded and flanged links are the two primary selections for Stainless Steel Piping. Welding offers you a leak-tight, smooth birthed, though it calls for argon protecting on-site; flanged joints are easier to take apart for upkeep, yet you require to see to it the gasket product works with the media.
Regular markets: great chemicals, pharmaceuticals, bio-fermentation, salt water desalination, and food and drink.
Datang’s technique: Stainless-steel Valves + Stainless Steel Pipes + Stainless Steel Pipe Fittings– a totally integrated corrosion-resistant system that leaves no weak spots.
2.2 Carbon Steel Pipes– The Heavy Lifter for Energy and Heavy Sector
Carbon Steel Water lines incorporate high strength with solid cost-effectiveness, making them the leading option in oil, gas, power generation, and district home heating. Common criteria consist of ASTM A53, A106, and API 5L, covering numerous stress classes and low-temperature sturdiness demands. The main drawback? Corrosion resistance is limited. In moist settings or when lugging harsh fluids, you’ll need external coverings and interior linings for defense.
When it comes to linking Carbon Steel Pipeline to shutoffs, welding or butt-welding is the standard for high-pressure systems– joint stamina requires to match the parent material. In medium- to low-pressure water and fire systems, flanged and grooved links are extra typical. Something to watch: ensure the stress course of your pipes and valves match. If your pipeline is rated Course 150 but your shutoff is Class 300, it’s excessive without adding any worth; if the valve is lower-rated than the pipeline, it comes to be the system’s weakest link.
Typical markets: long-distance oil/gas pipes, primary heating networks, commercial vapor lines, and compressed air headers.
Datang’s method: Carbon Steel Water lines and fittings ranked to the exact same pressure classes (Course 150/300/600) as our shutoffs, with smooth and welded options available, covering all wall thicknesses per ASME B36.10.

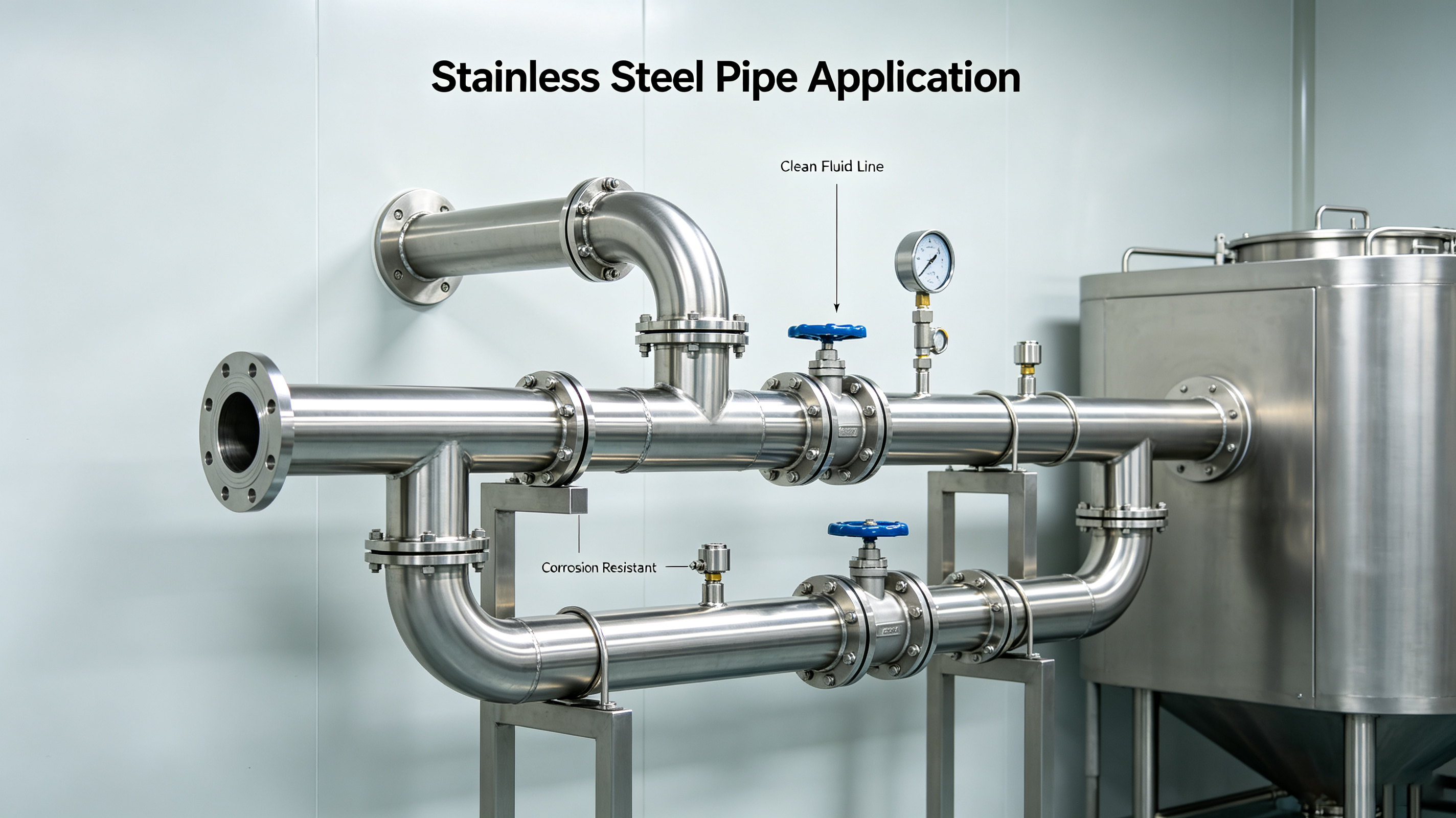

( Pipe Application)
2.3 Fire Battling Pipelines– A Specialized Category of Its Own
Fire Fighting Pipelines are mainly carbon steel or galvanized carbon steel, but they follow their very own set of requirements for corrosion security and stress screening. NFPA requirements normally require inner galvanizing or epoxy coating to resist internal rust from long-lasting water call. Exterior finish relies on whether the pipe is buried, exposed indoors, or mounted outdoors.
One more crucial distinction: hydrostatic test stress for Fire Combating Pipes is normally 1.5 times the working stress, held for a defined time to validate system honesty. When Datang products both Fire Security Valves and Fire Fighting Pipes, we can do a pre-shipment joint pressure examination to verify the entire system executes as created prior to it ever reaches your website.
Datang’s technique: fire-rated Gate/Butterfly Valves + internally/externally covered Fire Combating Pipes + Grooved Fittings– a complete chain from pump area to sprinkler heads, reducing purchase intricacy.

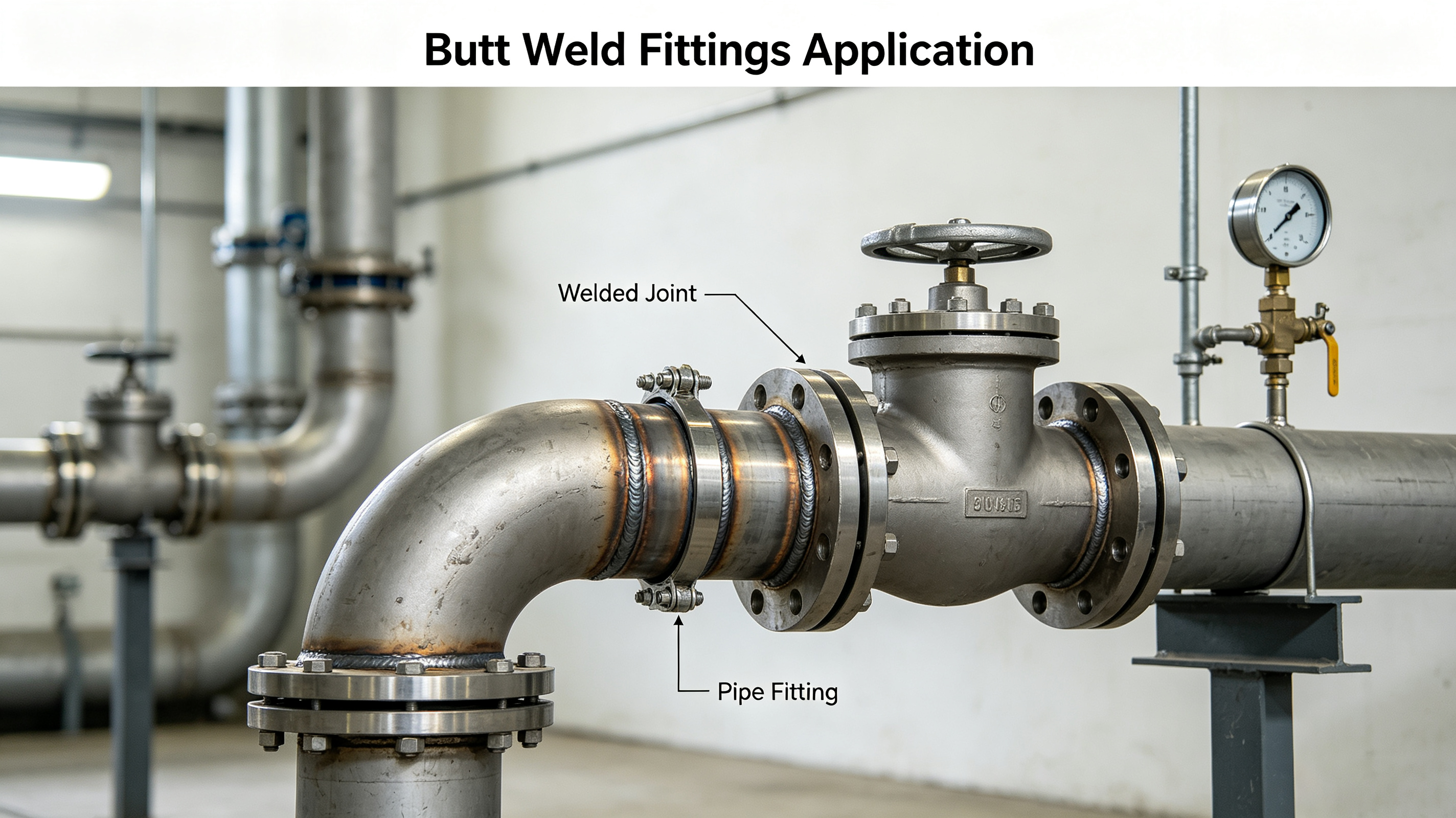

( Butt Weld Fittings Application Application)
3. A Quick Look at Pipe Fittings Link Methods
A piping system isn’t just valves and pipes– you additionally need installations to alter direction, decrease or expand sizes, produce branches, and link parts. The appropriate fitting selection can make or damage your setup effectiveness and lasting dependability.
â–ª Stainless-steel Pipe Fittings: consisting of joints, tees, concentric/eccentric reducers, and caps– made from the same stainless grades as the pipelines and signed up with by welding to keep deterioration resistance intact at the joints. Perfect for food, chemical, and hygienic systems.
â–ª Flanges: one of the most standard bolted connection, offering very easy disassembly and compatibility with a vast array of shutoffs and equipment. Face kinds include RF (increased face), FF (flat face), and RTJ (ring-type joint)– gaskets need to match temperature and stress problems. Datang products Flanges that are totally compatible with our shutoffs and pipes (ANSI/DIN/JIS requirements), so you do not encounter bolt-hole misalignment or mismatched securing faces throughout setup.
â–ª Grooved Fittings: these utilize a mechanical coupling and a gasket to create a quick, bolt-free connection. After roll-grooving the pipe ends, you snap in the gasket and tighten the combining. This technique is a favorite in fire protection and water system systems– setup is visibly faster than welding, and the joint allows for some angular deflection, which gives it good seismic resistance. Quality assurance right here concentrates on groove deepness and size precision, plus the compression ratio layout of the rubber gasket.
â–ª Butt Weld Fittings: developed for severe solutions– high temperature, high stress, and thermal cycling– like nuclear power plant main heavy steam headers and refinery heating unit inlets/outlets. Butt Weld Fittings match the wall surface density of the moms and dad pipeline and use full-penetration welds that create joint toughness equal to the base material. Wall surface thickness selection and bevel preparation are essential to weld quality. Datang provides these fittings with correctly machined bevels and finish caps for defense, prepared for area fit-up and welding.

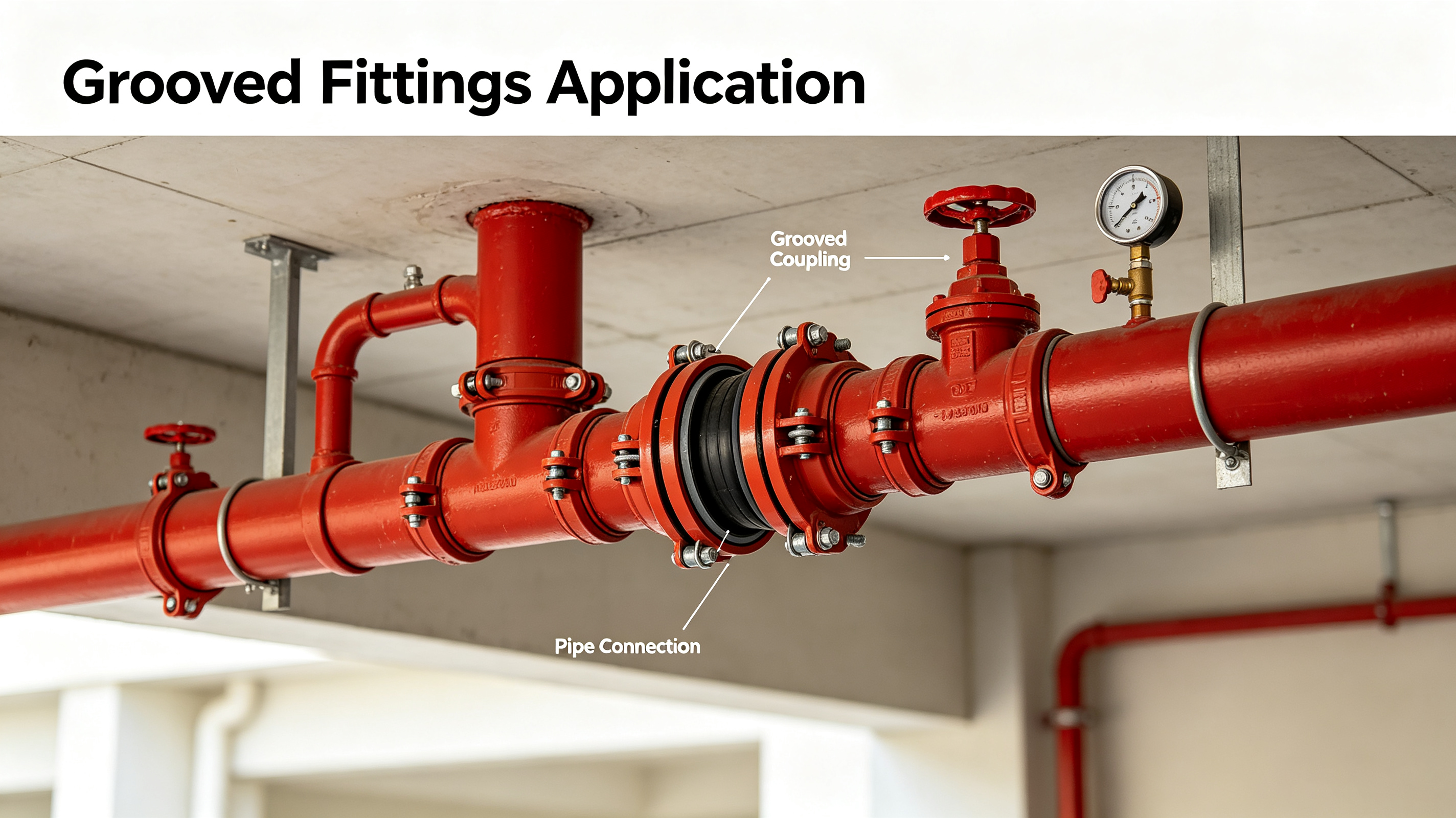

( Grooved Fittings Application Application)
Bringing everything with each other: a commercial piping system is far more than simply a stack of shutoff items. Whether you’re evaluating the fast shut-off of a Round Shutoff versus the reduced resistance of a Gate Shutoff, making a decision between the strangling precision of a World Valve and the automated knowledge of a Control Shutoff, or fulfilling the conformity demands of Fire Security Valves– every classification has its own wonderful area. And the pipes and fittings that link them with each other are equally as vital. Choosing the best products and connection techniques ensures your valves can actually supply the efficiency you’re trusting.
Datang, operating via our own independent site, brings valves, pipes, and installations right into one combined item profile, providing procurement teams a simpler, extra constant means to resource full systems. There’s no universal “finest”– only the right fit for your media, stress, temperature level, operating regularity, and installment restraints. That’s the logic that leads to systems that are both safe and cost-effective in the long run.
